In intralogistics, it is often not the big investment that makes the difference, but the right detail. Moving pallets of goods several times in order to weigh them separately wastes time, creates unnecessary distances and opens up sources of error. This is exactly where pallet trucks with integrated scales come in, combining transportation and weight determination in a single operation.
The benefits are pragmatic: fewer process steps, improved transparency and greater security in the internal movement of goods.
What is a pallet truck scale?

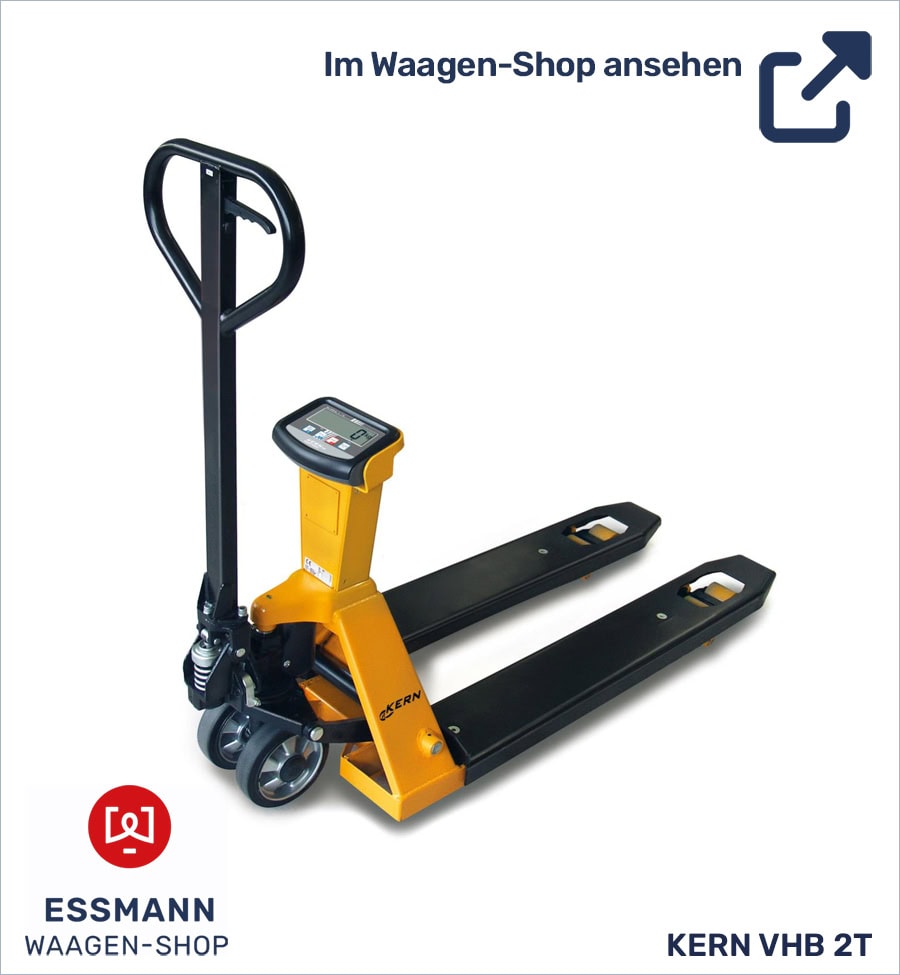

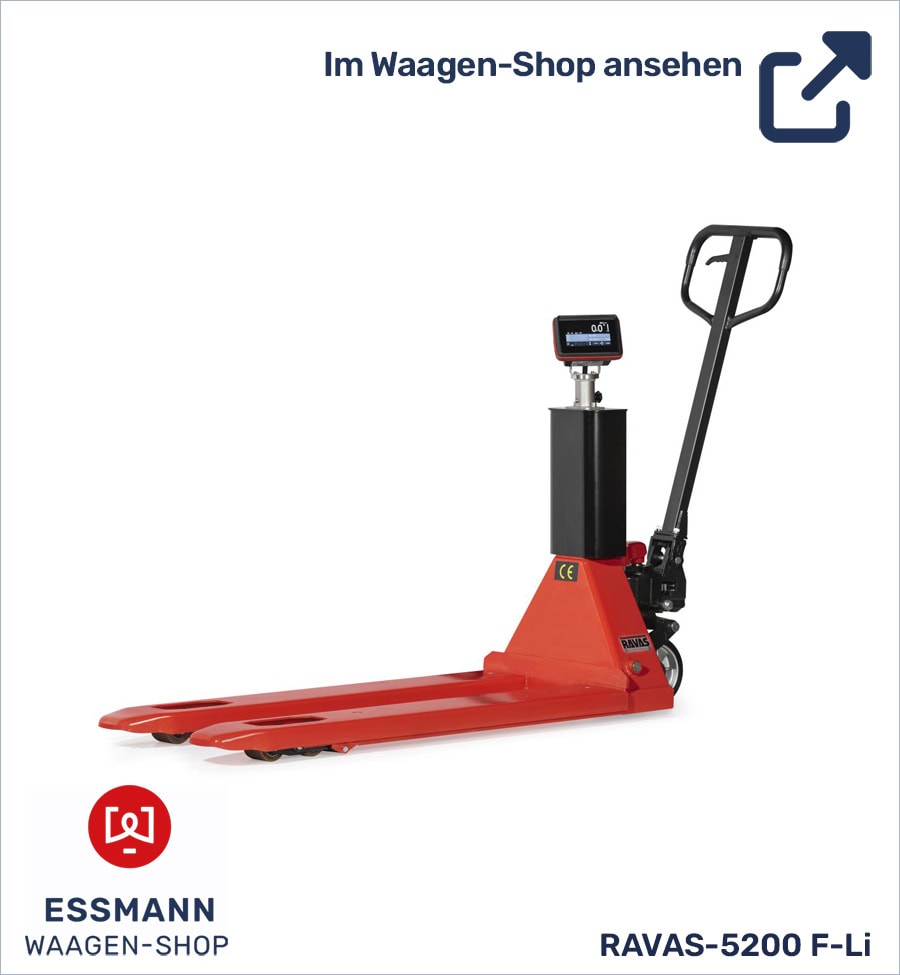

A pallet truck with scales, also known as a weighing pallet truck, is a hand or electric pallet truck with load cells integrated into its forks. These record the weight of the pallet or pallet cage picked up directly when it is lifted. A weighing terminal with display shows the result immediately, often supplemented by functions such as tare, totalizing memory or data output.
Technically, the device is based on the classic pallet truck:
- Two forks for driving under the pallet
- Hydraulics for lifting and lowering
- Drawbar for maneuvering
The difference lies inside: Several load cells record the load distribution and transmit the measured values to the evaluation unit. Power is usually supplied via rechargeable batteries.
Important for practice: Correct handling
Weighing pallet trucks are precise measuring devices. They are designed for level, solid surfaces. With the exception of special oil pressure scales, permanent use on ramps or as a pure transport device is not designed for hard continuous use as a pure transport pallet truck and permanent ramp operation. In practice, the most common source of error is non-utility use: If the weighing pallet truck is used permanently as a pure transport pallet truck, not only the measuring accuracy suffers, but also the service life of the load cells and the mechanics.
Why weighing directly on the pallet truck improves processes
In many companies, weighing is organizationally separated from transport. Pallets are picked up, moved, set down, picked up again and weighed. Each of these steps takes time and increases the likelihood of errors.
A pallet truck with scales reduces this complexity:
- Weight determination directly at the point of origin
- No additional trips to the stationary scales
- Immediate weight check for incoming goods, order picking or shipping
This creates measurable benefits, especially for frequently changing items or small batches.
Typical areas of application in industry and logistics
Lift trucks with scales are used wherever weights are required on a regular basis but no fixed scales can be integrated:
- Incoming goods inspection
- Shipping and truck loading
- Production logistics
- Stock and inventory processes
- Checkweighing in quality management
In practice, they do not replace calibrated truck scales – but they do close a crucial gap between transportation and information.
Advantages of a pallet truck with scales at a glance
- Mobile scales – can be used anywhere in the company
- Weighing directly when lifting pallets or pallet cages
- No need for additional measuring stations in many processes
- Intuitive operation, even for changing personnel
- Different weighing functions (tare, totalizing, counting functions depending on model)
- Reduced process times and lower error rate
Hand pallet truck or electric pallet truck with scales?
Which design makes sense depends heavily on the application profile:
Hand pallet truck with scales
- Compact, maneuverable and cost-efficient
- Ideal for shorter distances and moderate loads
- Less maintenance required
Electric pallet truck with scales
- For higher weights and longer transport distances
- Relief for staff
- Higher investment, but higher throughput
Alternatively, existing forklift trucks or electric pallet trucks can be equipped with weighing forks – a solution if industrial trucks are already in use.
Measuring accuracy: what really matters
Not every weight indicator is automatically suitable for every purpose. The decisive factors are
- Quality and position of the load cells
- Repeat accuracy with changing load distribution
- Possibility of adjustment and calibration
For billing-relevant transactions, a Calibration required. A calibration certificate is often sufficient for internal calibration certificate – The decisive factor is what the data is used for.
Useful accessories for weighing pallet trucks
Depending on the process, pallet trucks with scales can be functionally extended:
- Thermal printer for direct documentation
- Multi-range displays for different weight units
- Calibration for legally compliant applications
- Adjustment/calibration certificates for quality management and audits
- Bluetooth or WLAN for data transfer to IT systems
- Powerful battery packs for long operating times
Small investment, noticeable effect
A pallet truck with scales is a tool with a direct impact on efficiency, transparency and safety. Recording weight data where it is generated reduces process steps and creates reliable information for logistics, production and quality assurance.
For many companies, it is therefore one of the most economical additions to intralogistics.
We are scale manufacturers – we are happy to advise you
If you would like to clarify which version suits your processes – hand pallet truck, electric version or weighing fork – a brief technical consultation is worthwhile. Especially when it comes to accuracy requirements and interfaces to IT, the right design determines the benefits in everyday use. Of course, we also service, calibrate and repair weighing pallet trucks: Contact our Service team.
